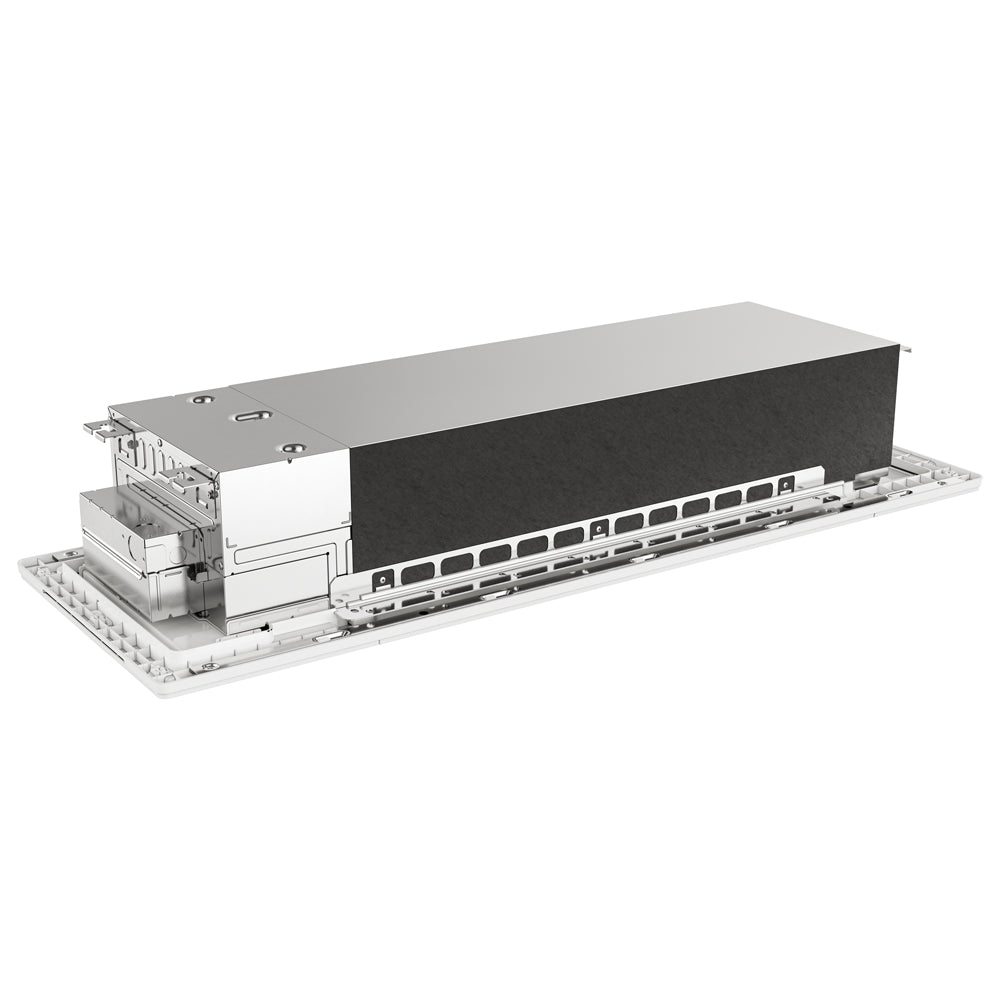

The MRCOOL® DIY® Series 18k BTU Ceiling Cassette
Details of the The MRCOOL® DIY® Series 18k BTU Ceiling Cassette
The MRCOOL® DIY® Series 18k BTU Ceiling Cassette provides efficient heating and cooling while remaining out of sight and discreet, making it a perfect fit for any space.
The MRCOOL® DIY® Series 18k BTU Ceiling Cassette provides efficient heating and cooling while remaining out of sight and discreet, making it a perfect fit for any space. This easy to install and easy to maintain unit is offered in both single-zone and multi-zone options and can provide coverage for large and small spaces. The cassette features an easy, low profile installation and can be recessed between all types of joists on 16 inch center including pre-manufactured I-joists. This makes it a perfect option for both new construction or retrofits. It doesn€™t have strict installation requirements like other ceiling cassettes, so you€™re able to install it in the location that suits you best, without using ductwork or wall space. The cassette works with the MrCool® DIY® Quick Connect® line set and the No-Vac® Coupler to increase the length of the line set. Not only does the unit offer quiet operation and multiple operating modes, but it also features the Elevation function that lowers the filter panel for easy air filter maintenance. Purchases of the MrCool® DIY® Series 18k BTU Ceiling Cassette are protected by a limited lifetime warranty in addition to a 7-year compressor warranty and 5-year parts warranty.
Features:
- Fits between 16" Ceiling Joists
- Featuring our easy access, elevating filter that can be lowered to a maximum of 4.9ft from the cassette.
- Low Profile Installation
- Pair with DIY 4th gen Multi and Single Zone Systems
- Designed to work with current and future joist standards, it can be recessed between all types of joists on 16 inch center - including pre-manufactured I-joists.
- Compatible with the DIY 4th gen 18k single-zone condenser as well as our DIY 4th gen multi-zone systems
Product Specification:
| Product Dimensions | 50.31" W x 8.98" D x 13.19" H (Net) |
| Product Weight | 44.97.lbs |
| Cooling Capacity | 17000 |
| Heating Capacity | 19000 |
| Voltage | 208/230 |
| Phase | 1 |
| Cycle | 60Hz |
| Decibel Rating | 40/28 |
| Decibel Rating Low/High | 21 dBA / 44 dBA |
| Liquid Line Size | 1/4in |
| Suction Line Size | 1/2in |
| Blower Motor RPM | 1344/1184/1024 |
| Quiet Modes | Yes |
| Wifi Compatibility | Yes |
| Auto Cool | Yes |
| App Compatibility | Yes |
| Compatible with IOS/Android | Yes / Yes |
| Remote Control Includes | Yes |
| Batteries | Yes |
| Contain Electronics | Yes |
| Contain Chemicals | Yes |
| Contain Aerosol | Yes |
| Contain Compressed Gas | Yes |
| Warranty | Limited Lifetime Compressor 5-year Parts/7-year Compressor |
| Restricted States | GU;PR;VI |
| Proposition 65 Warning | Yes |
